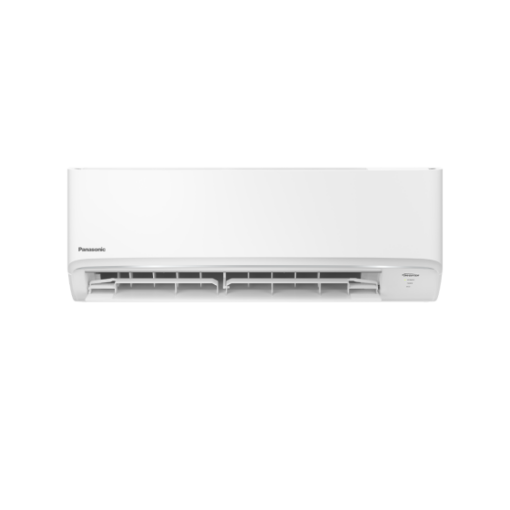

Panasonic Air Conditioner 12000BTU Inverter CS-PU12XKH-1A

Model
Indoor (50 Hz)
CS-PU12XKH-1
Outdoor
CU-PU12XKH-1
Cooling Capacity (min-max)
3.60 (1.02-4.00) kW
12,300 (3,480-13,600) Btu/h
EER (min-max)
11.50 (12.65-11.06) Btu/hW
3.36 (3.71-3.25) W/W
CSPF
4.92 W/W
Electrical Data
Voltage
230 V
Current
4.8 A
Power Input (min-max)
1,070 (275-1,230) W
Moisture Removal
2.1 L/h
4.4 Pt/h
Air Circulation
Indoor
11.3 m³/min (400 ft³/min)
Outdoor
30.2 m³/min (1,065 ft³/min)
Noise Level
Indoor (H / L / Q-Lo)
40/28/21 dB (A)
Outdoor (H)
48 dB (A)
Dimensions (Indoor)
Height
290 mm (11-7/16 inch)
Width
779 mm (30-11/16 inch)
Depth
209 mm (8-1/4 inch)
Dimensions (Outdoor)
Height
542 mm (21-11/32 inch)
Width
780 mm (30-23/32 inch)
Depth
289 mm (11-13/32 inch)
Net Weight
Indoor
8 kg (18 lb)
Outdoor
22 kg (49 lb)
Refrigerant Pipe Diameter
Liquid Side
ø 6.35 mm (1/4 inch)
Gas Side
ø 9.52 mm (3/8 inch)
Pipe Extension
Chargeless Pipe Length
7.5 m
Maximum Pipe Length
20 m
Maximum Elevation Length
15 m
Additional Refrigerant Gas*
10 g/m
Power Supply
Indoor
Comfort Features
ECO Mode With A.I.
Yes
Sleep Mode
Yes
Inverter Control
Yes
Powerful Mode
Yes
Soft Dry Operation Mode
Yes
Quiet Mode
Yes
Airflow Direction Control (Up & Down)
Yes
Manual Horizontal Airflow Direction Control
Yes
Cleaner Air Features
Odour Removing Function
Yes
Removable Washable Panel
Yes
Convenience Features
24-Hour Dual ON & OFF Real Setting Timer
Yes
LCD Wireless Remote Control
Yes
Wireless LAN Remote Control (For Internet Connection)
Yes (Optional)
Wired Remote Control
Yes (Optional)
Reliability Features
Random Auto Restart
Yes (32 Restart Patterns)
Blue Fin Condenser
Yes
Long Piping (max.)
20 m
Top Panel Maintenance Access
Yes
Self-Diagnostic Function
Yes
