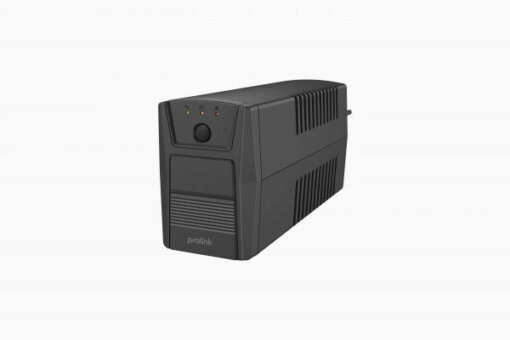

Prolink Super Fast Charging Line Interactive UPS PRO701SFC
LKR 14,990.00
3 X Rs. 4,996.67 with
or 3 X LKR4,996.67 with
6.3% off
Starting from
LKR 624.58➱
Starting from
LKR 2,498.33➱
Starting from
LKR 4,996.67➱
Starting from
LKR 5,146.57➱
Starting from
LKR 3,934.88➱
| Capacity | 650VA |
| Dimension (mm) | 286 x 96 x 138 (D x W x H) |
| Weight (kg) | 4.3 |
Warranty – 1 YEAR (UPS BATTERY), 2 YEARS (SYSTEM)
In stock
Compare
GENERAL
| Capacity | 650VA |
| Dimension (mm) | 286 x 96 x 138 (D x W x H) |
| Weight (kg) | 4.3 |
INPUT
| Voltage Range | 162 ~ 290VAC (Single boost)140 ~ 300VAC (Double boost) |
| Frequency | 50Hz/60Hz (Auto-sensing) |
| Phase | Single + GND |
OUTPUT
| Voltage Range | 220-240VAC |
| Battery Mode | 220-240VAC |
| Frequency | 50Hz ±1% (Battery mode) |
| Waveform | Simulated sine wave (Battery mode)Sine wave (AC mode) |
| Transfer Time | 2ms typical |
BATTERY
| Type | 12V/8.2AH x 1 |
| Backup Time | 8 – 20 mins depending on load |
| Recharge Time | 2-4 hours recover to 90% capacity |
INTERFACE & INDICATORS
| Interface | RS232, USB port, RJ45/RJ11 (Optional) |
| Display | LED/LCD Optional |
| Alarm | Batt. Mode, low battery, overload, fault, etc. |
PROTECTION/MONITORING
| Short Circuit Protection | Yes (Line mode & battery mode) |
| Surge Protection | Yes |
| Alarm | Audible & Visual |
| Overload Protection | Line mode : 100 – 120% 1 min change to fault mode >120% change to fault mode immediatelyBattery mode : 100 – 120% 1 min change to fault mode >120% change to fault mode immediately |
| Intelligent Battery | Prevent overcharging of battery |
| Management | Protect battery and prolong battery life |
Real Panel
| 1. AC Mode IndicatorGreen LED Lighting
2. Battery Mode Indicator Battery Normal : Yellow LED Lighting and Blinking every 30s 3. Overload and Fault Indicator Overload : Red LED Blinking every 2s 4. Power Switch 5. Power AC Input 6. Backup Outlets |
